C# Type IsExplicitLayout

Description

Type IsExplicitLayout gets a value indicating whether the fields of the current type are laid out at explicitly specified offsets.

Syntax

Type.IsExplicitLayout has the following syntax.


public bool IsExplicitLayout { get; }

Example

The following example creates an instance of a type and displays the value of its IsExplicitLayout property. It uses the MySystemTime class.


//from   ww  w. j  a  va  2s .c  o  m
using System;
using System.Reflection;
using System.ComponentModel;
using System.Runtime.InteropServices;


[StructLayout(LayoutKind.Explicit, Size=16, CharSet=CharSet.Ansi)]
public class MySystemTime
{
   [FieldOffset(0)]public ushort wYear;
   [FieldOffset(1)]public ushort wMilliseconds;
}

public class Program
{
    public static void Main(string[] args)
    {
        Type  t = typeof(MySystemTime);
        Console.WriteLine(t.IsExplicitLayout);
    }
}

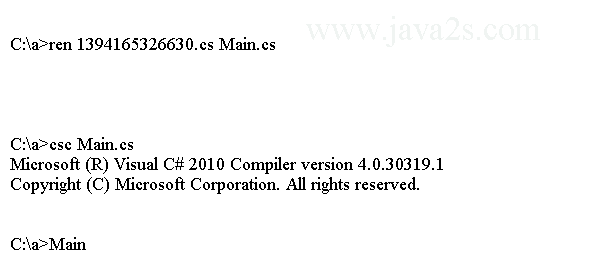

The code above generates the following result.
