Oracle PL/SQL Tutorial - PL/SQL Scope

The variable scope refers to when a declared item can be seen by another PL/SQL block.

Any item declared in the declaration section of a function or procedure is visible only within the same function or procedure.

Any item declared in the declaration section of a package body is visible only within any other item in the same package body.

Any item declared in a package specification is visible to any other stored function, stored procedure, and package for which the owner of the calling method has execute privileges.

Example 2

The following code is a Package Specification to Test Scope.


create or replace package SCOPE as
    -- global variable declaration -- from  w w w . j  a  v a2 s .c  o m
    gv_scope varchar2(80) := 'I''m a global (or package spec) variable';

    -- a package function declaration
    FUNCTION my_scope_is_global return varchar2;

    -- a package procedure declaration
    PROCEDURE my_scope_is_global;

end SCOPE;
/

The following code is A Package Body to Test Scope.


create or replace package SCOPE as
    -- global variable declaration -- www .j  a  va  2 s  .  c om
    gv_scope varchar2(80) := 'I''m a global (or package spec) variable';

    -- a package function declaration
    FUNCTION my_scope_is_global return varchar2;

    -- a package procedure declaration
    PROCEDURE my_scope_is_global;

end SCOPE;
/

create or replace package body SCOPE as
    -- an package body variable declaration
    iv_scope varchar2(80) := 'a package body variable';

    -- package body function declaration
    FUNCTION my_scope_is_instance return varchar2 is
        v_answer_1 varchar2(3) := 'Yes';
    begin
        SYS.DBMS_OUTPUT.put_line(chr(9)||'in function');
        SYS.DBMS_OUTPUT.put_line(chr(9)||gv_scope);
        return v_answer_1;
    end my_scope_is_instance;

    -- package function declaration
    FUNCTION my_scope_is_global
    return varchar2 is
        v_answer_2 varchar2(3) := 'Yes';
    begin
        SYS.DBMS_OUTPUT.put_line(chr(9)||'procedure');
        SYS.DBMS_OUTPUT.put_line(chr(9)||iv_scope);
        return v_answer_2;
    end my_scope_is_global;


    -- package body procedure declaration
    PROCEDURE my_scope_is_instance is
        v_answer_3 varchar2(3) := 'Yes';
    begin
        SYS.DBMS_OUTPUT.put_line(chr(9)||'my_scope_is_instance');
        SYS.DBMS_OUTPUT.put_line(chr(9)||gv_scope);
        SYS.DBMS_OUTPUT.put_line(v_answer_3);
    end my_scope_is_instance;


    -- package procedure declaration
    PROCEDURE my_scope_is_global is
        v_answer_4 varchar2(3) := 'Yes';
    begin
        SYS.DBMS_OUTPUT.put_line(chr(9)||'my_scope_is_global');
        SYS.DBMS_OUTPUT.put_line(chr(9)||iv_scope);
        SYS.DBMS_OUTPUT.put_line(v_answer_4);
    end my_scope_is_global;
end SCOPE;
/

The following code shows how to use the Package SCOPE.


declare -- from  ww w  . j av  a 2  s . c  o  m
    v_scope varchar2(40) := 'a local variable';
    -- This is a local (or embedded) function
    FUNCTION my_scope_is_local
    return varchar2 is
        v_answer_0 varchar2(3) := 'Yes';
    begin
        return v_answer_0;
    end my_scope_is_local;

    -- This is a local (or embedded) procedure
    PROCEDURE my_scope_is_local is
        v_answer varchar2(3) := 'Yes';
    begin
        SYS.DBMS_OUTPUT.put_line(v_answer);
    end my_scope_is_local;

begin
    SYS.DBMS_OUTPUT.put_line(v_scope);
    SYS.DBMS_OUTPUT.put_line('Can I access SCOPE'' global variable?');
    SYS.DBMS_OUTPUT.put_line(SCOPE.gv_scope);
    SYS.DBMS_OUTPUT.put_line('Can I access SCOPE'' instance variable?');

    SYS.DBMS_OUTPUT.put_line(my_scope_is_local());
    SYS.DBMS_OUTPUT.put_line('Can I access SCOPE'' global function?');
    SYS.DBMS_OUTPUT.put_line(SCOPE.my_scope_is_global());
    SYS.DBMS_OUTPUT.put_line('Can I access SCOPE'' instance function?');

    SYS.DBMS_OUTPUT.put_line('Can I access my local procedure?');
    my_scope_is_local();
    SYS.DBMS_OUTPUT.put_line('Can I access SCOPE'' global procedure?');
    SCOPE.my_scope_is_global();
    SYS.DBMS_OUTPUT.put_line('Can I access SCOPE'' instance procedure?');
end;
/

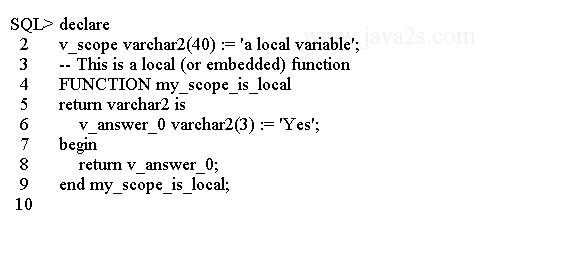

The code above generates the following result.
