Draw spiral with lineTo method on HTML5 canvas in JavaScript

Description

The following code shows how to draw spiral with lineTo method on HTML5 canvas.

Example


<!--from w  ww  .j a  v a 2  s  .  c  om-->

<!DOCTYPE HTML>
<html>
<head>
<script>
window.onload = function(){
var canvas = document.getElementById("myCanvas");
var context = canvas.getContext("2d");

var radius = 0;
var angle = 0;

context.lineWidth = 10;
context.strokeStyle = "#0096FF"; // blue-ish color
context.beginPath();
context.moveTo(canvas.width / 2, canvas.height / 2);

for (var n = 0; n < 150; n++) {
radius += 0.75;
// make a complete circle every 50 iterations
angle += (Math.PI * 2) / 50;
var x = canvas.width / 2 + radius * Math.cos(angle);
var y = canvas.height / 2 + radius * Math.sin(angle);
context.lineTo(x, y);
}

context.stroke();
};
</script>
</head>
<body>
<canvas id="myCanvas" width="600" height="250" style="border:1px solid black;">
</canvas>
</body>
</html>

Click to view the demo

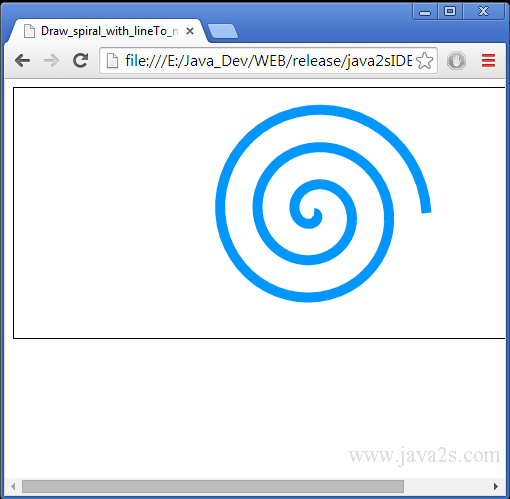

The code above generates the following result.
