Description

Sorting integers using a binary tree

Demo Code

#include <stdio.h>
#include <stdlib.h>
#include <ctype.h>

typedef struct Node Node;

// Defines a node in a binary tree sotring integers
struct Node/*from   w  ww .j  a v a  2  s  .  c o m*/
{
  long item;                                   // The data item
  int count;                                   // Number of copies of item
  Node *pLeft;                                 // Pointer to left node
  Node *pRight;                                // Pointer to right node
};

Node *create_node(long value);                 // Create a tree node
Node *add_node(long value, Node *pNode);       // Insert a new node
void list_nodes(Node *pNode);                  // List all nodes
void free_nodes(Node *pNode);                  // Release memory

int main(void)
{
  long newvalue = 0;
  Node *pRoot = NULL;
  char answer = 'n';
  do
  {
    printf("Enter the node value: ");
    scanf(" %ld", &newvalue);
    if(!pRoot)
      pRoot = create_node(newvalue);
    else
      add_node(newvalue, pRoot);
    printf("Do you want to enter another (y or n)? ");
    scanf(" %c", &answer, sizeof(answer));
  } while(tolower(answer) == 'y');

  printf("The values in ascending sequence are:\n");
  list_nodes(pRoot);                           // Output the contents of the tree
  free_nodes(pRoot);                           // Release the heap memory

  return 0;
}

Node *create_node(long value)
{
  Node *pNode = (Node*)malloc(sizeof(Node));
  pNode->item = value;                         // Set the value
  pNode->count = 1;                            // Set the count
  pNode->pLeft = pNode->pRight = NULL;         // No left or right nodes
  return pNode;
}

Node *add_node(long value, Node *pNode)
{
  if(!pNode)                                   // If there's no node
    return create_node(value);                 // ...create one and return it
  if(value == pNode->item)
  {                                            // Value equals current node...
    ++pNode->count;                            // ...so increment count ...
    return pNode;                              // ...and return the same node
  }

  if(value < pNode->item)
  {                                            // Less than current node...
    if(!pNode->pLeft)                          // ...and no left node
    {
      pNode->pLeft = create_node(value);       // ... so create a left node...
      return pNode->pLeft;                     // ...and return it.
    }
    else                                       // There is a left node...
      return add_node(value, pNode->pLeft);    // ...so add value via left node
  }
  else
  {                                            // Greater than current node...
    if(!pNode->pRight)
    {                                          // ...but no right node...
      pNode-> pRight = create_node(value);     // ...so create one...
      return pNode-> pRight;                   // ...and return it.
    }
    else                                       // There is a right node...
      return add_node(value, pNode->pRight);   // ...so add to that.
  }
}

void list_nodes(Node *pNode)
{
  if(pNode->pLeft)
    list_nodes(pNode->pLeft);

  printf("%10d x %10ld\n", pNode->count, pNode->item);

  if(pNode->pRight)
    list_nodes(pNode->pRight);
}

void free_nodes(Node *pNode)
{
  if(!pNode)                                   // If there's no node...
    return;                                    // ...we are done.

  if(pNode->pLeft)                             // If there's a left sub-tree...
    free_nodes(pNode->pLeft);                  // ...free memory for those nodes.

  if(pNode->pRight)                            // If there's a right sub-tree...
    free_nodes(pNode->pRight);                 // ...free memory for those nodes.

  free(pNode);                                 // Free current node memory
}

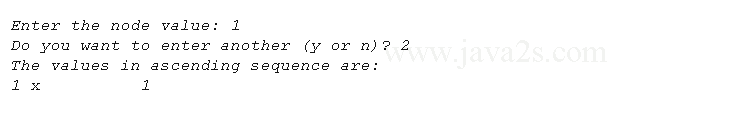

Result
