Description

Using the bitwise shift operators.

Demo Code

#include <iostream>
#include <iomanip>
using namespace std;

void displayBits( unsigned ); // prototype

int main() //from  ww w . j  a va2 s .c  o m
{
   unsigned number1 = 960;

   // demonstrate bitwise left shift
   cout << "The result of left shifting\n" ;
   displayBits( number1 );
   cout << "8 bit positions using the left-shift operator is\n";
   displayBits( number1 << 8 );

   // demonstrate bitwise right shift
   cout << "\nThe result of right shifting\n";
   displayBits( number1 );
   cout << "8 bit positions using the right-shift operator is\n";
   displayBits( number1 >> 8 );
}

// display bits of an unsigned integer value
void displayBits( unsigned value )
{
   const int SHIFT = 8 * sizeof( unsigned ) - 1;
   const unsigned MASK = 1 << SHIFT;

   cout << setw( 10 ) << value << " = ";

   for ( unsigned i = 1; i <= SHIFT + 1; ++i )
   {
       cout << ( value & MASK ? '1' : '0' );
       value <<= 1; // shift value left by 1

       if ( i % 8 == 0 ) // output a space after 8 bits
           cout << ' ';
   }

   cout << endl;
}

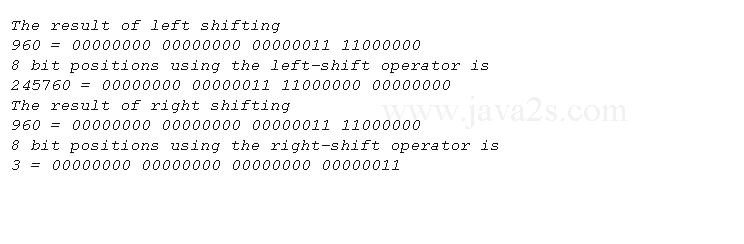

Result
