Click the Office button, and then click Excel Options.

In the left pane, click Popular. Select the Show Developer tab in the Ribbon.

Click the Developer tab. Click the Design Mode button.

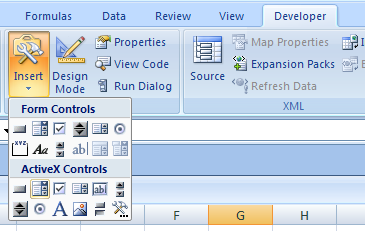

Click the Insert button arrow, and then click the ActiveX control.

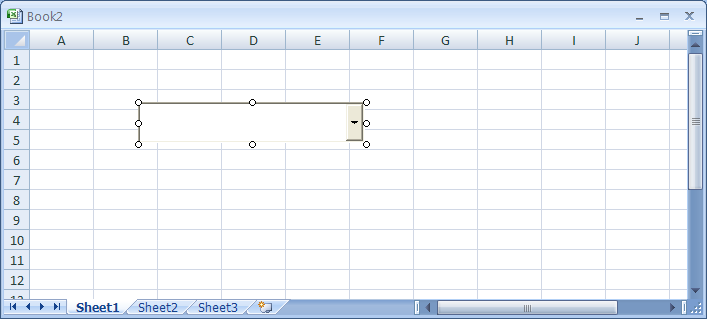

Drag to draw the ActiveX control.

To resize the control, drag and move a resize handle (circles).

To add Visual Basic code to the ActiveX control, click the View Code button.

Click the Design Mode button again to exit.
