JavaFX Tutorial - JavaFX Slider








The sliders can display and interact with a range of numeric values.

A slider control got two things: a track and a draggable thumb.

On the track we can choose to include tick marks and labels that indicate numeric values of the range.

The following code shows how to create a slider who's range, or span, goes from 0 to 1, and who's value defaults to .5

import javafx.application.Application;
import javafx.scene.Group;
import javafx.scene.Scene;
import javafx.scene.control.Slider;
import javafx.stage.Stage;
/*w  ww  . ja  v  a  2 s  .c  om*/
public class Main extends Application {

    @Override
    public void start(Stage stage) {
        Group root = new Group();
        Scene scene = new Scene(root, 600, 400);
        stage.setScene(scene);
        stage.setTitle("Slider Sample");


        Slider slider = new Slider(0, 1, 0.5);
        root.getChildren().add(slider);

        stage.show();
    }
    public static void main(String[] args) {
        launch(args);
    }
}

The code above generates the following result.

null




Creating a Slider

The following code creates a Slider with default empty constructor and then sets the values for the slider controls.

setMin and setMax define, respectively, the minimum and the maximum values on the slider.

The setValue method sets the current value of the slider. And the current value should be less than the maximum value and more than the minimum value. The setValue method move thumb on the track.

Slider slider = new Slider();
slider.setMin(0);
slider.setMax(200);
slider.setValue(140);

setShowTickMarks and setShowTickLabels define the visual appearance of the slider. and enable the marks and labels.

slider.setShowTickLabels(true);
slider.setShowTickMarks(true);

The unit distance between major tick marks is set to 50 by setMajorTickUnit method.

The number of minor ticks between any two major ticks is specified as 5 by setMinorTickCount method.

The setSnapToTicks method keeps the slider's value aligned with the tick marks.

The setBlockIncrement method defines the distance that the thumb moves when a user clicks on the track.

slider.setMajorTickUnit(50);
slider.setMinorTickCount(5);
slider.setBlockIncrement(10);

A slider with customized tick marks and tick mark labels, which also spans from 0 to 1

import javafx.application.Application;
import javafx.scene.Group;
import javafx.scene.Scene;
import javafx.scene.control.Slider;
import javafx.stage.Stage;
/*  ww  w  . j  ava  2s .c  om*/
public class Main extends Application {

    @Override
    public void start(Stage stage) {
        Group root = new Group();
        Scene scene = new Scene(root, 600, 400);
        stage.setScene(scene);
        stage.setTitle("Slider Sample");

        Slider slider = new Slider(0, 1, 0.5);
        slider.setShowTickMarks(true);
        slider.setShowTickLabels(true);
        slider.setMajorTickUnit(0.25f);
        slider.setBlockIncrement(0.1f);

        root.getChildren().add(slider);

        stage.show();
    }
    public static void main(String[] args) {
        launch(args);
    }
}

The code above generates the following result.

null




Example

Slider value property change listener

import javafx.application.Application;
import javafx.beans.value.ChangeListener;
import javafx.beans.value.ObservableValue;
import javafx.geometry.Insets;
import javafx.scene.Group;
import javafx.scene.Scene;
import javafx.scene.control.Label;
import javafx.scene.control.Slider;
import javafx.scene.layout.GridPane;
import javafx.stage.Stage;
/*w w  w  .j a  v a 2  s  .co m*/
public class Main extends Application {

    final Slider opacityLevel = new Slider(0, 1, 1);
    final Label opacityCaption = new Label("Opacity Level:");
    final Label opacityValue = new Label(Double.toString(opacityLevel.getValue()));

    @Override
    public void start(Stage stage) {
        Group root = new Group();
        Scene scene = new Scene(root, 600, 400);
        stage.setScene(scene);
        stage.setTitle("Slider Sample");


        GridPane grid = new GridPane();
        grid.setPadding(new Insets(10, 10, 10, 10));
        grid.setVgap(10);
        grid.setHgap(70);

        scene.setRoot(grid);

        GridPane.setConstraints(opacityCaption, 0, 1);
        grid.getChildren().add(opacityCaption);


        opacityLevel.valueProperty().addListener(new ChangeListener<Number>() {
            public void changed(ObservableValue<? extends Number> ov,
                Number old_val, Number new_val) {
                    System.out.println(new_val.doubleValue());
                    opacityValue.setText(String.format("%.2f", new_val));
            }
        });

        GridPane.setConstraints(opacityLevel, 1, 1);
        grid.getChildren().add(opacityLevel);


        GridPane.setConstraints(opacityValue, 2, 1);
        grid.getChildren().add(opacityValue);

        stage.show();
    }
    public static void main(String[] args) {
        launch(args);
    }
}

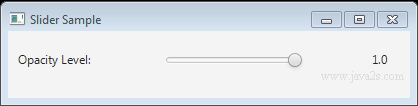

The code above generates the following result.

null

Example 2

balance, rate, volume Slider

/* w  ww  .  j  a  v a 2s. c  o  m*/
/*
 * Copyright (c) 2011, Pro JavaFX Authors
 * All rights reserved.
 *
 * Redistribution and use in source and binary forms, with or without
 * modification, are permitted provided that the following conditions are met:
 * 1. Redistributions of source code must retain the above copyright notice,
 *    this list of conditions and the following disclaimer.
 * 2. Redistributions in binary form must reproduce the above copyright notice,
 *    this list of conditions and the following disclaimer in the documentation
 *    and/or other materials provided with the distribution.
 * 3. Neither the name of JFXtras nor the names of its contributors may be used
 *    to endorse or promote products derived from this software without
 *    specific prior written permission.
 *
 * THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
 * AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
 * IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
 * ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE
 * LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
 * CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
 * SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS
 * INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
 * CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
 * ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE
 * POSSIBILITY OF SUCH DAMAGE.
 *
 *  CodeMonkeyToDo.java - A more complex example of using the AudioClip class.
 *
 */

//package projavafx.codemonkeytodo;

import javafx.application.Application;
import javafx.event.ActionEvent;
import javafx.event.EventHandler;
import javafx.geometry.HPos;
import javafx.geometry.Insets;
import javafx.geometry.Pos;
import javafx.scene.Scene;
import javafx.scene.control.Button;
import javafx.scene.control.Hyperlink;
import javafx.scene.control.Label;
import javafx.scene.control.Slider;
import javafx.scene.layout.GridPane;
import javafx.scene.layout.Priority;
import javafx.scene.layout.VBox;
import javafx.scene.media.AudioClip;
import javafx.scene.web.WebView;
import javafx.stage.Stage;

/**
 * @author Dean Iverson
 */
public class Main extends Application {

  private final AudioClip coffeeClip;
  private final AudioClip jobClip;
  private final AudioClip meetingClip;
  private Slider volumeSlider;
  private Slider rateSlider;
  private Slider balanceSlider;

  public static void main(String[] args) {
    Main.launch(args);
  }

  public Main() {
    coffeeClip = new AudioClip(getClipResourceString("resources/coffee.mp3"));
    jobClip = new AudioClip(getClipResourceString("resources/job.mp3"));
    meetingClip = new AudioClip(getClipResourceString("resources/meeting.mp3"));
  }

  @Override
  public void start(Stage primaryStage) {
    final GridPane grid = new GridPane();
    grid.setPadding(new Insets(10));
    grid.setHgap(10);
    grid.setVgap(5);

    createControls(grid);
    createClipList(grid);

    final Scene scene = new Scene(grid, 640, 380);
    scene.getStylesheets().add(getClass().getResource("media.css").toString());

    primaryStage.setTitle("AudioClip Example");
    primaryStage.setScene(scene);
    primaryStage.show();
  }

  private void createControls(GridPane grid) {
    final Label volumeLabel = new Label("Volume");
    final Label rateLabel = new Label("Rate");
    final Label balanceLabel = new Label("Balance");

    GridPane.setHalignment(volumeLabel, HPos.CENTER);
    GridPane.setHalignment(rateLabel, HPos.CENTER);
    GridPane.setHalignment(balanceLabel, HPos.CENTER);

    volumeSlider = new Slider(0.0, 1.0, 1.0);
    rateSlider = new Slider(0.25, 2.5, 1.0);
    balanceSlider = new Slider(-1.0, 1.0, 0.0);

    GridPane.setHgrow(volumeSlider, Priority.ALWAYS);
    GridPane.setHgrow(rateSlider, Priority.ALWAYS);
    GridPane.setHgrow(balanceSlider, Priority.ALWAYS);

    grid.add(volumeLabel, 0, 2);
    grid.add(volumeSlider, 0, 3);
    grid.add(rateLabel, 1, 2);
    grid.add(rateSlider, 1, 3);
    grid.add(balanceLabel, 2, 2);
    grid.add(balanceSlider, 2, 3);
  }

  private void createClipList(GridPane grid) {
    final VBox vbox = new VBox(30);
    vbox.setAlignment(Pos.TOP_CENTER);

    final Label clipLabel = new Label("Code Monkey To-Do List:");
    clipLabel.setId("clipLabel");


    final Button getUpButton = new Button("Get Up, Get Coffee");
    getUpButton.setPrefWidth(300);
    getUpButton.setOnAction(createPlayHandler(coffeeClip));

    final Button goToJobButton = new Button("Go to Job");
    goToJobButton.setPrefWidth(300);
    goToJobButton.setOnAction(createPlayHandler(jobClip));

    final Button meetingButton = new Button("Have Boring Meeting");
    meetingButton.setPrefWidth(300);
    meetingButton.setOnAction(createPlayHandler(meetingClip));

    final Hyperlink link = new Hyperlink("About Code Monkey...");
    link.setOnAction(new EventHandler<ActionEvent>() {
      @Override
      public void handle(ActionEvent event) {
        WebView wv = new WebView();
        wv.getEngine().load("http://www.jonathancoulton.com/2006/04/14/" +
                            "thing-a-week-29-code-monkey/");

        Scene scene = new Scene(wv, 720, 480);

        Stage stage = new Stage();
        stage.setTitle("Code Monkey");
        stage.setScene(scene);
        stage.show();
      }
    });

    vbox.getChildren().addAll(clipLabel, getUpButton, goToJobButton,
                              meetingButton, link);

    GridPane.setHalignment(vbox, HPos.CENTER);
    GridPane.setHgrow(vbox, Priority.ALWAYS);
    GridPane.setVgrow(vbox, Priority.ALWAYS);
    grid.add(vbox, 0, 0, GridPane.REMAINING, 1);
  }

  private String getClipResourceString(String clipName) {
    return getClass().getResource(clipName).toString();
  }

  private EventHandler<ActionEvent> createPlayHandler(final AudioClip clip) {
    return new EventHandler<ActionEvent>() {
      @Override
      public void handle(ActionEvent event) {
        clip.play(volumeSlider.getValue(), balanceSlider.getValue(),
                  rateSlider.getValue(), 0, 0);
      }
    };
  }
}
