Abstract Data Types with only virtual functions - C++ Class

C++ examples for Class:Virtual Function

  1. HOME
  2. C++
  3. Class
  4. Virtual Function

Description

Abstract Data Types with only virtual functions

Demo Code


#include <iostream>

class Shape //from   w ww.  ja  v  a 2s.c o m
{
public:
    Shape() {}
    virtual ~Shape() {}
    virtual long getArea() { return -1; } // error
    virtual long getPerim() { return -1; }
    virtual void draw() {}
};

class Circle : public Shape
{
public:
    Circle(int newRadius):radius(newRadius) {}
    ~Circle() {}
    long getArea() { return 3 * radius * radius; }
    long getPerim() { return 9 * radius; }
    void draw();
private:
    int radius;
    int circumference;
};

void Circle::draw()
{
    std::cout << "Circle drawing routine here!\n";
}

class Rectangle : public Shape
{
public:
    Rectangle(int newLen, int newWidth):
          length(newLen), width(newWidth) {}
    virtual ~Rectangle() {}
    virtual long getArea() { return length * width; }
    virtual long getPerim() { return 2 * length + 2 * width; }
    virtual int getLength() { return length; }
    virtual int getWidth() { return width; }
    virtual void draw();
private:
    int width;
    int length;
};

void Rectangle::draw()
{
    for (int i = 0; i < length; i++)
    {
        for (int j = 0; j < width; j++)
            std::cout << "x ";

        std::cout << "\n";
    }
}

class Square : public Rectangle
{
public:
    Square(int len);
    Square(int len, int width);
    ~Square() {}
    long getPerim() { return 4 * getLength(); }
};

Square::Square(int newLen):
    Rectangle(newLen, newLen)
{}

Square::Square(int newLen, int newWidth):
    Rectangle(newLen, newWidth)
{
    if (getLength() != getWidth())
         std::cout << "Error, not a square ... a rectangle?\n";
}

int main()
{
    int choice;
    bool fQuit = false;
    Shape * sp;

    while (1)
    {
         std::cout << "(1) Circle (2) Rectangle (3) Square (0) Quit: ";
         std::cin >> choice;

         switch (choice)
          {
         case 1:
              sp = new Circle(5);
              break;
         case 2:
                sp = new Rectangle(4, 6);
                break;
           case 3:
                sp = new Square(5);
                break;
           default:
                fQuit = true;
                break;
           }
           if (fQuit)
                break;

           sp->draw();
           std::cout << "\n";
    }
    return 0;
}

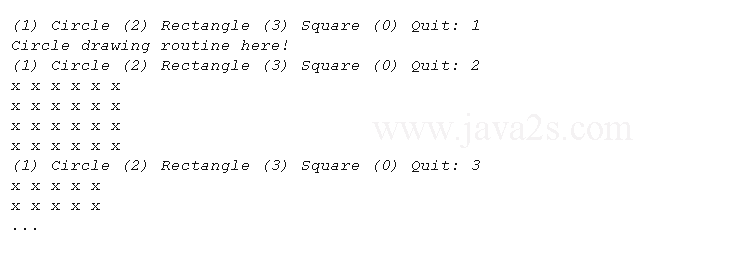

Result
