Pure Virtual Functions - C++ Class

C++ examples for Class:Virtual Function

  1. HOME
  2. C++
  3. Class
  4. Virtual Function

Description

Pure Virtual Functions

Demo Code


#include <iostream>

class Shape /*from ww  w  .  j a  v  a  2 s. c  o m*/
{
public:
    Shape() {}
    virtual ~Shape() {}
    virtual long getArea() = 0;
    virtual long getPerim()= 0;
    virtual void draw() = 0;
private:
};

void Shape::draw()
{
    std::cout << "Abstract drawing mechanism!\n";
}

class Circle : public Shape
{
public:
    Circle(int newRadius):radius(newRadius) {}
    ~Circle() {}
    long getArea() { return 3 * radius * radius; }
    long getPerim() { return 9 * radius; }
    void draw();
private:
    int radius;
    int circumference;
};

void Circle::draw()
{
    std::cout << "Circle drawing routine here!\n";
    Shape::draw();
}

class Rectangle : public Shape
{
public:
    Rectangle(int newLen, int newWidth):
         length(newLen), width(newWidth) {}
    virtual ~Rectangle() {}
    long getArea() { return length * width; }
    long getPerim() { return 2 * length + 2 * width; }
    virtual int getLength() { return length; }
    virtual int getWidth() { return width; }
    void draw();
private:
    int width;
    int length;
};

void Rectangle::draw()
{
    for (int i = 0; i < length; i++)
    {
         for (int j = 0; j < width; j++)
              std::cout << "x ";

        std::cout << "\n";
    }
    Shape::draw();
}

class Square : public Rectangle
{
public:
    Square(int len);
    Square(int len, int width);
    ~Square() {}
    long getPerim() {return 4 * getLength();}
};

Square::Square(int newLen):
    Rectangle(newLen, newLen)
{}

Square::Square(int newLen, int newWidth):
    Rectangle(newLen, newWidth)
{
    if (getLength() != getWidth())
         std::cout << "Error, not a square ... a rectangle?\n";
}

int main()
{
    int choice;
    bool fQuit = false;
    Shape * sp;

    while (1)
    {
         std::cout << "(1) Circle (2) Rectangle (3) Square (0) Quit: ";
         std::cin >> choice;

         switch (choice)
         {
         case 1:
             sp = new Circle(5);
             break;
         case 2:
             sp = new Rectangle(4, 6);
             break;
         case 3:
             sp = new Square(5);
             break;
         default:
             fQuit = true;
             break;
         }
         if (fQuit)
             break;
         sp->draw();
         std::cout << "\n";
    }
    return 0;
}

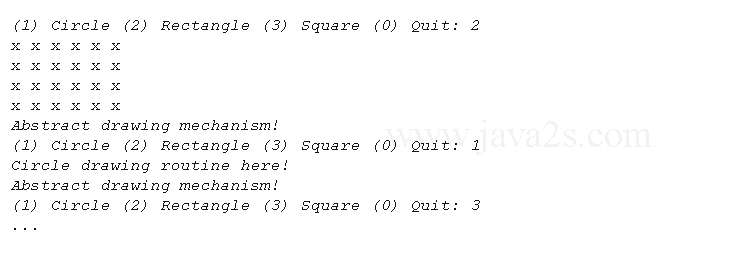

Result
